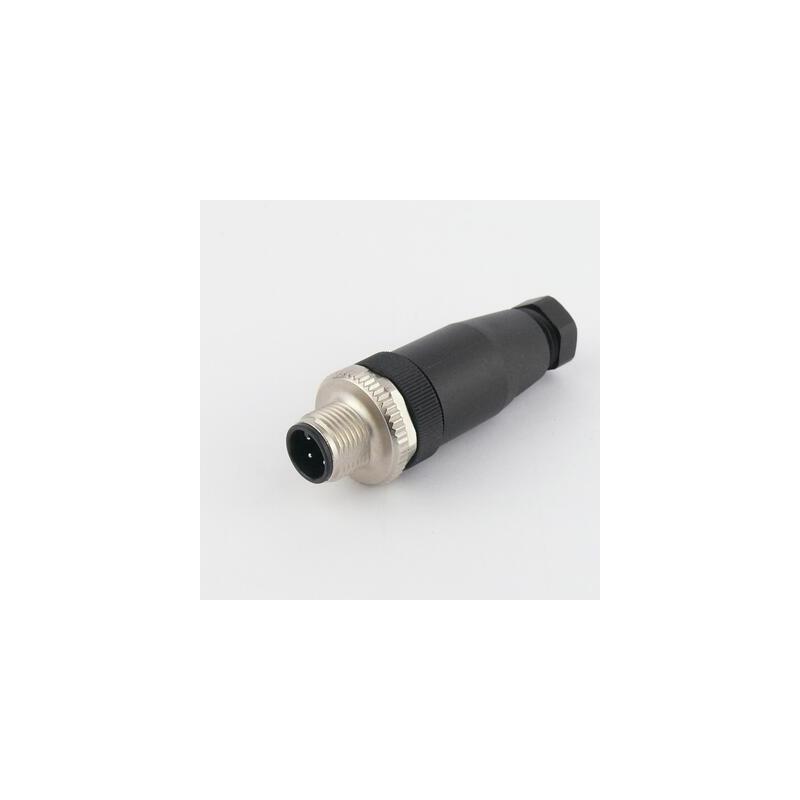

SSZ-12-4
Category | Connection technology |
Group | Field-wireable connector M12 |
Article number | 725.0803.103 |
Name | SSZ-12-4 |
Wire crosssection | 0,14…0,34 mm² |
Connection A | Connector M12 straight |
Connection B | Screw-clamp contact |
Rated voltage cable | 30V |
Number of poles | 4 |
Weight | 0,020 kg |
max load current | 4A |
Ambient temperature | -40°C...+85°C |
protection class | IP 67 screwed |
Degree of protection | III safety extra-low voltage |
CTN | 85366990 |
