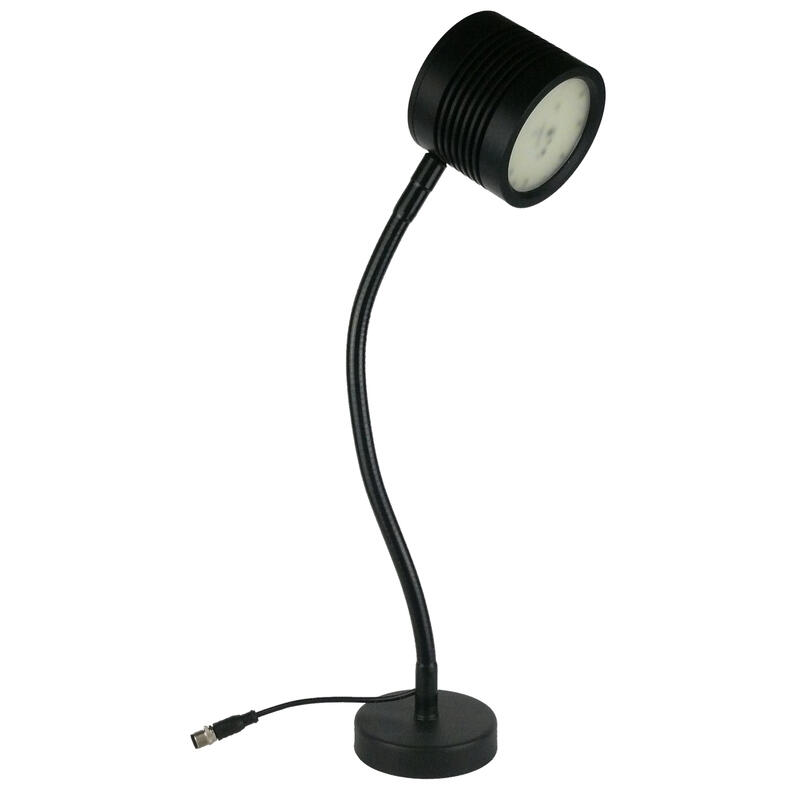

Machine lighting MBR-100-MAG-KST4

Category	Machinelighting
Group	Machine lighting
Article number	300.0100.100
Name	MBR-100-MAG-KST4
Connection	Cableconnector M12
Design	round
Illumination value at 0,5m	2500 Lux
Illumination value at 1,0m	720 Lux
Coding of	A
color temperature	5000 K
color rendering index	85
LED-color	white
Input power at 24VDC	12 W
Lighting area	Ø 80 mm
Lighting current	1600 lm
Material of case	Aluminum black anodized
Material of pane	Perspex
PWM input	24 VDC up to 15kHz
Shock / vibration	30g / 10–55Hz, 1mm
Segments	1
Dimensions	520 x 100 x 100 m
Number of poles	3
Weight	1,85 kg
service voltage	24 VDC (±10%)
operating temperature	-25°C … +50°C
Noload current	500 mA
polarity protection	yes
protection class	IP67
Degree of protection	III safety extra-low voltage
Country of origin	DE
CTN	94054990
Description	Machine lighting with PWM Input for dimming and switching.
