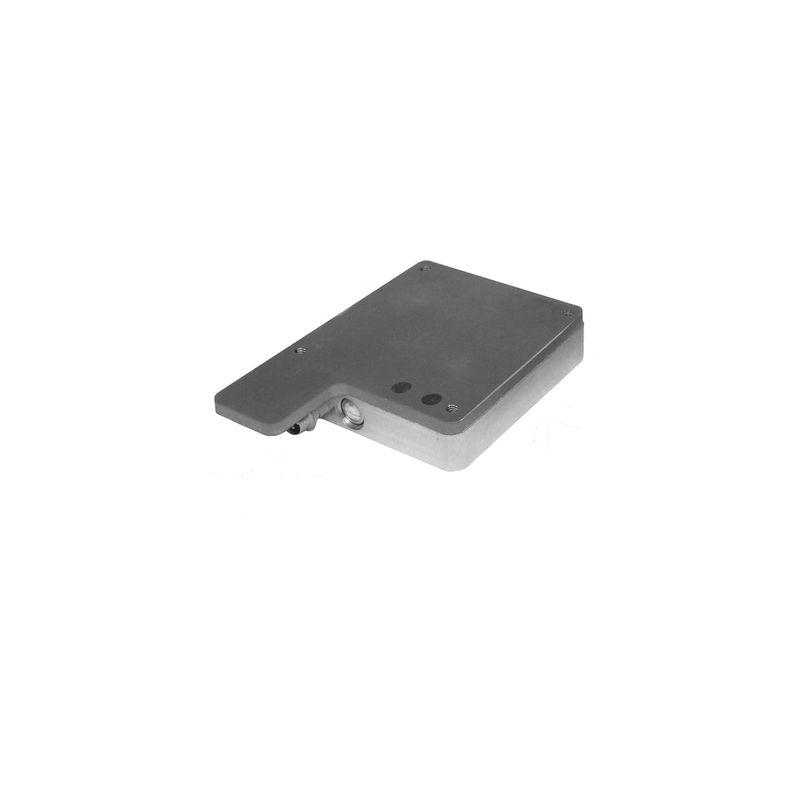

PSP-50-PSK-ST3
| Category | Special sensors |
| Group | Impact sensor |
| Article number | 310.0050.101 |
| Name | PSP-50-PSK-ST3 |
| Connection | Connector M8 |
| Evaluation | static |
| Resolution | steelball 3mm from 20mm height |
| Sensitivity | adjustable |
| Operating principle | contact based |
| Impulse stretching | adjustable to 80 ms |
| Insulation voltage endurance | 500 V |
| Material | VA / Alu |
| Material of case | Aluminum |
| Output | PNP NO |
| switching frequency | 100 Hz |
| Active area | 55 x 50 mm |
| Dimensions | 75 x 55 x 10 mm |
| Number of poles | 3 |
| Weight | 0,130 kg |
| max. load current | 200 mA / short circuit proof |
| Ambient temperature | - 25°C ... + 75°C |
| service voltage | 10 - 35 VDC |
| Noload current | < 15 mA |
| protection class | IP 67 |
| Degree of protection | III safety extra-low voltage |
| Country of origin | DE |
| CTN | 85365019 |
