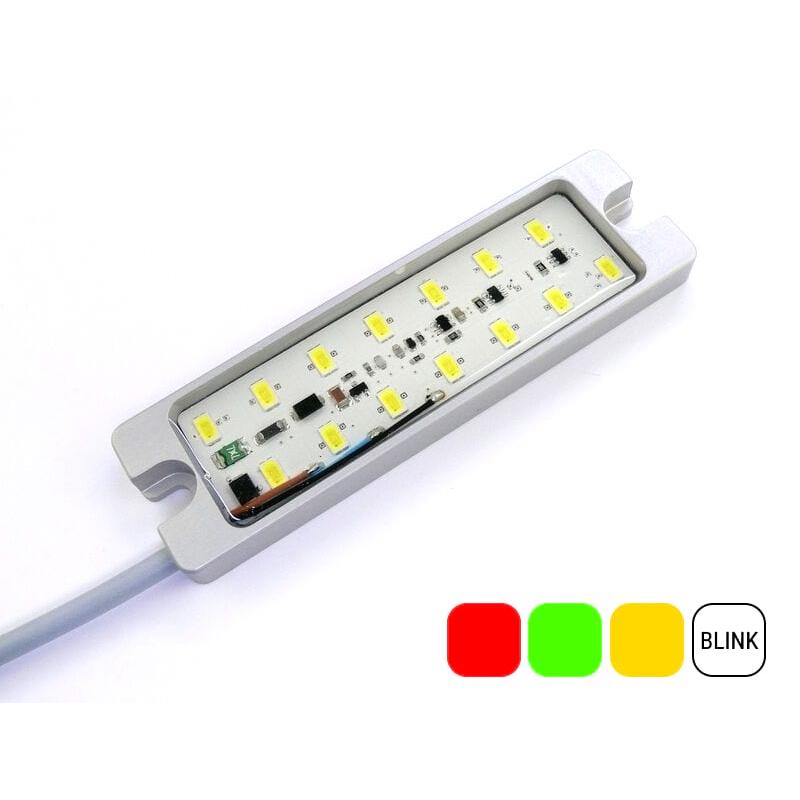

MBC-100-RGG-KST4-5
Category | Machinelighting |
Group | Signal lighting |
Article number | 300.1000.012 |
Name | MBC-100-RGG-KST4-5 |
Connection | Cableconnector M12 |
Design | flat |
LED-color | red,green,yellow |
Input power at 24VDC | 2,7 W |
Lighting area | 80 x 25 mm |
Material of case | Aluminum silver anodized |
Material of pane | Perspex |
Shock / vibration | 30g / 10–55Hz, 1mm |
Segments | 1 |
Dimensions | 100 x 29 x 7,5 mm |
Number of poles | 5 |
Weight | 0,20 kg |
service voltage | 24 VDC (±10%) |
operating temperature | -25°C … +50°C |
Noload current | rot 60mA grün 30mA gelb 90mA |
polarity protection | yes |
protection class | IP67 |
Degree of protection | III safety extra-low voltage |
Country of origin | DE |
CTN | 94054990 |
Description | Signal light with 3 colors opt. flashing |
